EC2 Deployment Guide

Complete guide to deploying full-stack applications on AWS EC2 with Docker, Nginx, and GitHub Actions CI/CD

Prerequisites

• AWS Account with EC2 access
• Local SSH client (or use AWS Console)
• GitHub repository with your application
• Docker and Docker Compose knowledge (basics)
• .env file with environment variables

---

Step 1: Launch an EC2 Instance

1.1 Create Instance

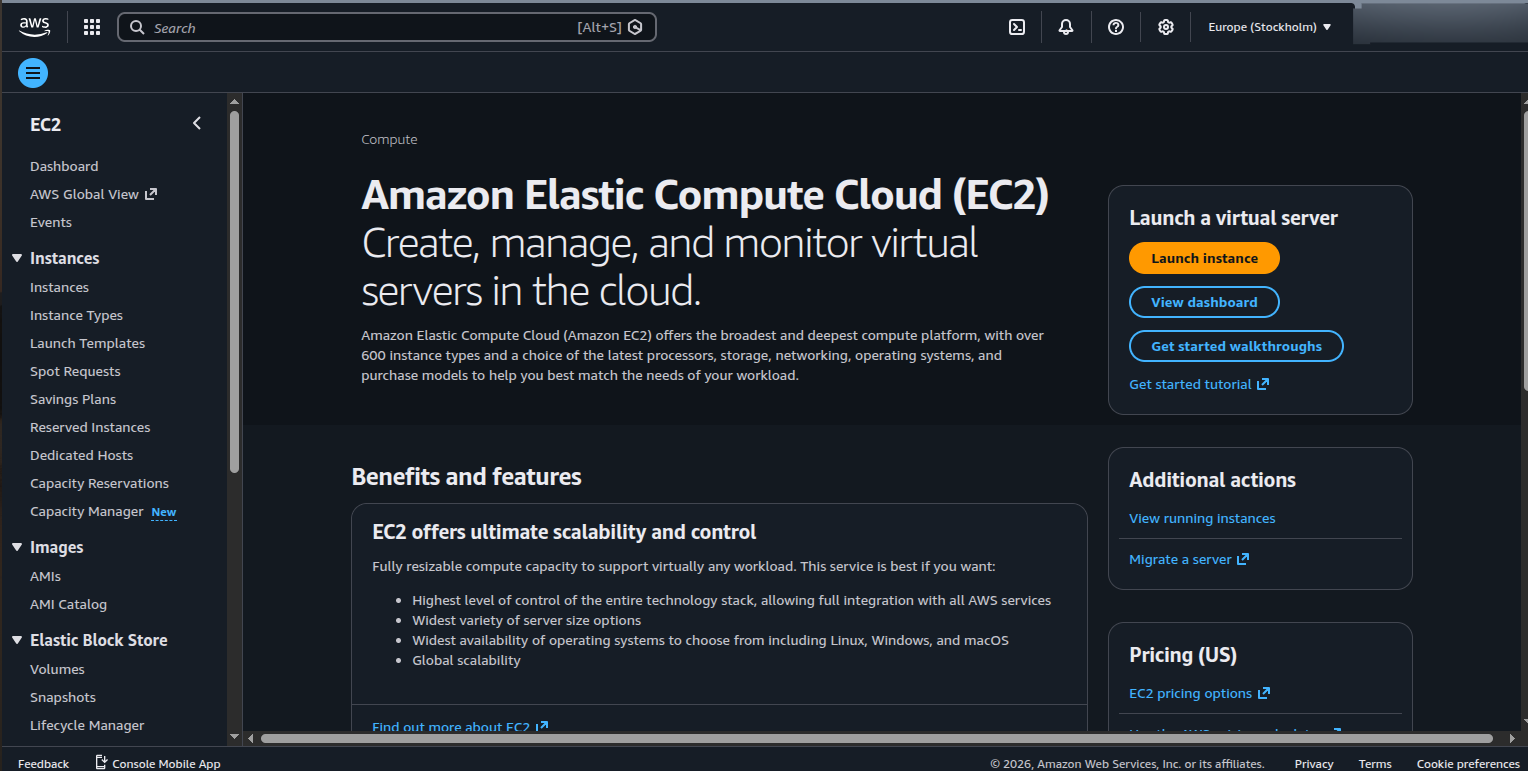

1. Go to AWS Console → EC2 Dashboard
2. Click “Launch Instances”

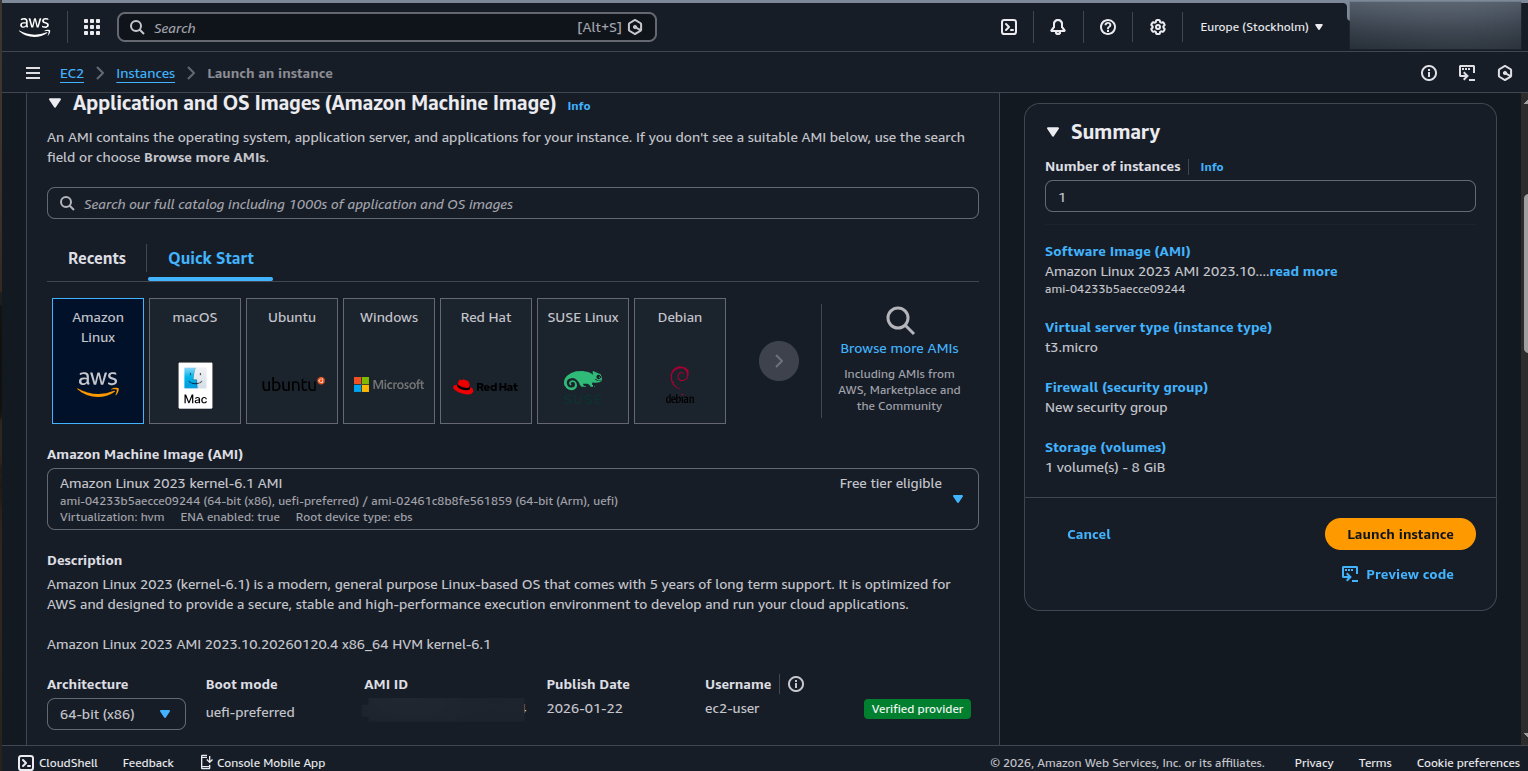

3. Select an AMI (Amazon Machine Image)
   • Recommended: Ubuntu 22.04 LTS (free tier eligible)
4. Choose instance type: t2.micro (free tier) or t3.small for better performance

1.2 Configure Security Group

Configure security group to allow:

Port	Protocol	Source	Purpose
22	TCP	Your IP	SSH Access
80	TCP	0.0.0.0/0	HTTP
443	TCP	0.0.0.0/0	HTTPS
3000-8080	TCP	0.0.0.0/0	Custom App Ports

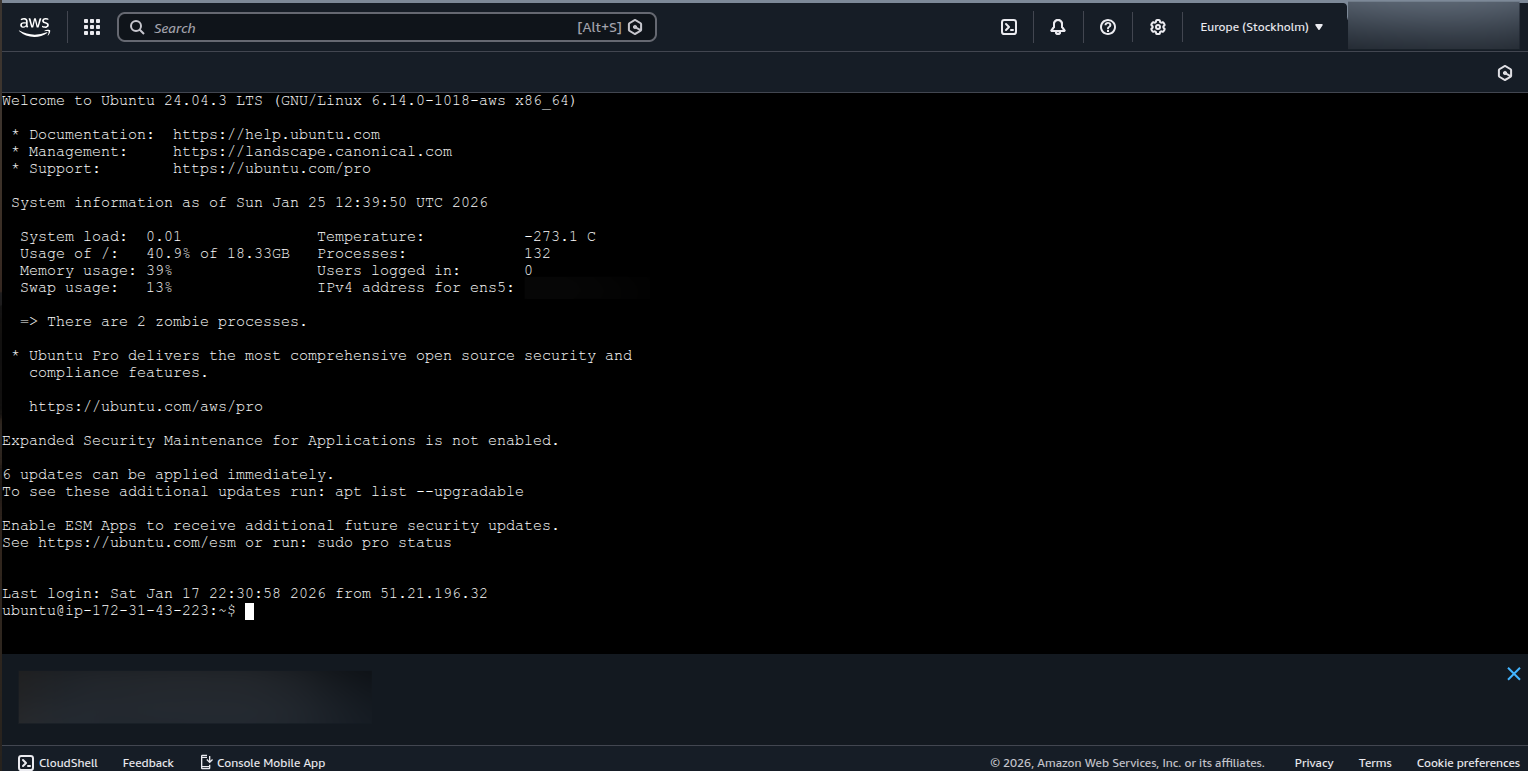

1.3 Connect to Instance

Option A: SSH from Local Terminal

# Download your key pair (e.g., my-key.pem)
chmod 400 my-key.pem

# Connect via SSH
ssh -i my-key.pem ubuntu@YOUR_PUBLIC_IP

Option B: AWS Console EC2 Instance Connect

• Click instance → “Connect” tab → “EC2 Instance Connect”
• Browser-based terminal opens directly

---

Step 2: Update System & Install Dependencies

Once connected to your instance:

# Update system packages
sudo apt update && sudo apt upgrade -y

# Install Git
sudo apt install git -y

# Install Docker
sudo apt install docker.io -y

# Add ubuntu user to docker group (avoid sudo for docker commands)
sudo usermod -aG docker ubuntu

# Verify Docker installation
docker --version

2.1 Logout & Login

# Logout to apply docker group changes
exit

# SSH back in
ssh -i my-key.pem ubuntu@YOUR_PUBLIC_IP

---

Step 3: Clone Repository & Setup SSH Keys

3.1 Generate SSH Key on EC2

# Generate SSH key pair on EC2
ssh-keygen -t ed25519 -C "[e-mail]"

# Press Enter for default location
# Press Enter for no passphrase (or set one for security)

# Display public key
cat ~/.ssh/id_ed25519.pub

3.2 Add Public Key to GitHub

1. Go to GitHub → Settings → SSH and GPG keys
2. Click “New SSH key”
3. Paste the output from cat ~/.ssh/id_ed25519.pub
4. Give it a name (e.g., “EC2 Server”)
5. Click “Add SSH key”

3.3 Clone Your Repository

# Clone using SSH (not HTTPS!)
git clone [e-mail]:YOUR_USERNAME/YOUR_REPO.git

# Navigate into project
cd YOUR_REPO

Why SSH? HTTPS requires entering credentials each time. SSH uses keys for automatic authentication.

---

Step 4: Environment Variables & Docker Setup

4.1 Create .env File

Create a .env file in your project root with your configuration:

# Frontend Configuration
REACT_APP_API_URL=http://localhost:5000
NODE_ENV=production

# Backend Configuration
DATABASE_URL=postgresql://user:password@db-host:5432/dbname
NODE_ENV=production
JWT_SECRET=your_jwt_secret_key
API_PORT=5000

# App Settings
LOG_LEVEL=info

⚠️ Important: Never commit .env files to git. Add .env to your .gitignore

4.2 Load Environment Variables in Docker Compose

Update your docker-compose.yml to load from .env file:

version: '3.8'

services:
  frontend:
    build: ./frontend
    ports:
      - "3000:3000"
    env_file:
      - .env
    environment:
      - REACT_APP_API_URL=${REACT_APP_API_URL}
    depends_on:
      - backend

  backend:
    build: ./backend
    ports:
      - "5000:5000"
    env_file:
      - .env
    environment:
      - NODE_ENV=${NODE_ENV}
      - DATABASE_URL=${DATABASE_URL}
      - JWT_SECRET=${JWT_SECRET}
      - API_PORT=${API_PORT}
    volumes:
      - ./backend:/app
    depends_on:
      - db

  db:
    image: postgres:15-alpine
    environment:
      - POSTGRES_USER=${DB_USER}
      - POSTGRES_PASSWORD=${DB_PASSWORD}
      - POSTGRES_DB=${DB_NAME}
    volumes:
      - postgres_data:/var/lib/postgresql/data
    ports:
      - "5432:5432"

volumes:
  postgres_data:

4.3 Verify Docker Files

Make sure your project has:

• Dockerfile - Instructions to build your app image
• docker-compose.yml - Orchestrate multiple containers

4.4 Build & Run

# Build images and start containers
docker-compose up --build -d

# View running containers
docker ps

# View logs
docker-compose logs -f

# Stop containers
docker-compose down

---

Step 5: Nginx Configuration (Reverse Proxy)

5.1 Install Nginx

sudo apt install nginx -y
sudo systemctl start nginx
sudo systemctl enable nginx

5.2 Configure Nginx

# Edit nginx config
sudo nano /etc/nginx/sites-available/default

Replace content with:

server {
    listen 80 default_server;
    listen [::]:80 default_server;

    server_name _;

    # Frontend
    location / {
        proxy_pass http://localhost:3000;
        proxy_set_header Host $host;
        proxy_set_header X-Real-IP $remote_addr;
        proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
        proxy_set_header X-Forwarded-Proto $scheme;
    }

    # Backend API
    location /api/ {
        proxy_pass http://localhost:5000/;
        proxy_set_header Host $host;
        proxy_set_header X-Real-IP $remote_addr;
        proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
    }
}

5.3 Test & Reload

# Test nginx config syntax
sudo nginx -t

# Reload nginx
sudo systemctl reload nginx

✅ Now access your app via http://YOUR_PUBLIC_IP (Nginx will route to your containers)

---

Step 6: Setup CI/CD with GitHub Actions

6.1 Create GitHub Actions Workflow

Create .github/workflows/deploy.yml in your repository:

name: Deploy to AWS

on:
  push:
    branches: [ main ]

jobs:
  deploy:
    runs-on: ubuntu-latest

    steps:
    - uses: actions/checkout@v3

    - name: Deploy to EC2
      env:
        PRIVATE_KEY: ${{ secrets.EC2_PRIVATE_KEY }}
        HOST: ${{ secrets.EC2_HOST }}
        USER: ubuntu
        REPO_PATH: /home/ubuntu/YOUR_REPO

      run: |
        echo "$PRIVATE_KEY" > private_key.pem
        chmod 600 private_key.pem

        ssh -i private_key.pem -o StrictHostKeyChecking=no $USER@$HOST '
          cd $REPO_PATH &&
          git pull origin main &&
          docker-compose down &&
          docker-compose up --build -d
        '

        rm private_key.pem

6.2 Add GitHub Secrets

1. Go to GitHub → Settings → Secrets and variables → Actions
2. Add these secrets:
   • EC2_PRIVATE_KEY: Content of your my-key.pem file
   • EC2_HOST: Your EC2 public IP address

6.3 Test Deployment

Push to main branch:

git push origin main

GitHub Actions will automatically:

1. Pull latest code
2. SSH into EC2
3. Stop old containers
4. Build and start new containers

---

Troubleshooting

Environment Variables Not Loading

Problem: Environment variables are undefined in containers

# Check if .env file exists in project root
ls -la .env

# Verify variables are being passed
docker-compose config | grep VARIABLE_NAME

# Rebuild containers
docker-compose down
docker-compose up --build -d

Can’t Clone Repository

Problem: “Permission denied (publickey)“

# Ensure SSH key is added to GitHub
ssh -T [e-mail]

# Check if key is registered
cat ~/.ssh/id_ed25519.pub

Docker Permission Denied

sudo usermod -aG docker $USER
# Logout and login again
exit
ssh -i my-key.pem ubuntu@YOUR_PUBLIC_IP

Port Already in Use

# Check what's using port 3000
sudo lsof -i :3000

# Kill process if needed
kill -9 <PID>

Nginx Not Routing Correctly

# Check nginx logs
sudo tail -f /var/log/nginx/error.log

# Verify containers are running
docker ps

---

Deployment Summary

Step	Action	Purpose
1	Launch EC2 Instance	Create cloud server
2	Install Tools (Docker, Git)	Setup required dependencies
3	SSH Key & Clone Repo	Secure authentication and code sync
4	Setup Environment Variables	Configure app settings safely
5	Docker Compose Deploy	Run containerized application
6	Configure Nginx	Route traffic to containers
7	GitHub Actions CI/CD	Automate future deployments

---

Next Steps

• Set up SSL/TLS with Let’s Encrypt for HTTPS
• Configure monitoring (CloudWatch, Prometheus)
• Setup database backups and replication
• Implement health checks and auto-recovery
• Learn Kubernetes for scaling

🎉 Your application is now live at http://YOUR_PUBLIC_IP
